Technical Decription

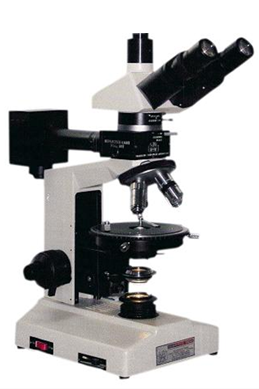

  • Microscope frame for transmission and reflection mode polarization microscopy with built-in filter holders .
  • Infinity Corrected
  • Plan achromatic, polarizing objectives with magnifications

4X POL N.A. 0.13 W.D. 17. 0 mm
10X POL N.A. 0.3 W.D. 10.0 mm
20X POL N.A. 0.5 W.D. 2.1 mm
40X POL N.A. 0.75 W.D. 1.1 mm

  • Wide field 10X eyepiece (02 numbers), with double cross line focusable .
  • Minimum 22 mm
  • Fixed Trinocular Tube.
  • High Power LED Light with power supply .
  • High Power LED light with power supply Built in Transmitted light filters.
  • Minimum 4 position centrable & detachable nosepiece .
  • Stroke: Min 22mm. Fine Stroke: Min 100µm Minimum

Graduation: 1µm. Torque adjustment feature for coarse handle .

  • Strain-free Polarizing condenser (Swing out type) .
  • Circular Rotatable and centerable 360° graduated mechanical stage,

Object Guide mechanical stage for XY movement of the specimen, centering knob and stage clip .

  • Polarizer slider for reflected illumination tube .
  • 360⁰ Rotatable with scale interval of 5⁰
  • Wedge shaped, Measurement range 0 – 4λ
  • Minimum 5 M Pixel Colored CCD Camera to be mounted on Trinocular tube with a suitable mounting adapter

CCD Sensor Size : 2/3 inch
Resolution: 1920x 1080 pixels
Pixel Size: 3.45 X 3.45µm
A/D Converter: 12 bit
Minimum exposure time: 1ms or smaller
Live Frame rate: 15 frames per second
fast communication with PC via USB Port
Standard Imaging software with Image Acquisitions, Measurements, and Point or object detection. Having facility to align multiple images Together.
