A j a y o p t i k

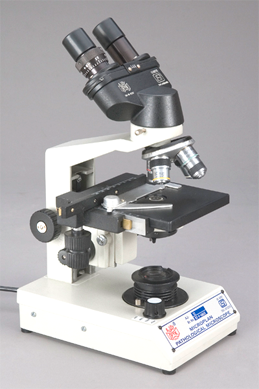

Model no. Aj-12
Observation head Binocular version with 45 degree inclined monocular tube rotate-able through 360 degree. Interpupilary distance adjustment ring 54-74 mm & dioptric adjustment
Main body All part pressure die cast to provide long life and good mechanical strength.
Eye pieces Wide field 10x or 15x .
Objectives 4x,10x,40/45x (s. L. ), 100x oil immersion (s. L. )
Nose pieces Quadruple nosepiece revolves on ball bearing.
Mechanical stage Co-axial low positioned mechanical x-y stage of size 120 x 125 mm with stage fine vernier graduation.
Condenser Abbe condenser n. A. 1. 25 having a spherical lens, adjustable iris diaphragm.
Illumination Built in base illumination system with 6v-20w halogen bulb and plano concave mirror attachment suitable for 220v, 50hz ac supply
Packing Nicely packed in box.
