- info@ajayoptik.com
- Ambala Cantt-133006, Haryana
- Request Quote

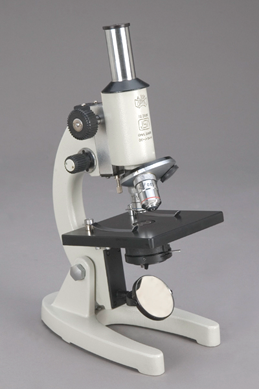

| Model | Aj-5 |
|---|---|
| All Ajay Make Optics Having Features | Para focal, precentred, high numerical aperture, high resolution |
| Special Coating Having No Effect Of | Moisture, fungus, fogginess or any other weather effect with passage of time. |
| Magnification | 50x to 675x |
| Stand | All metal constructed body with properly balanced , inclinable arm up to 90 degree for easy viewing |
| Focussing | Separate coarse fine focusing knobs |
| Stage | Full square stage 112 x 112 mm size with stage clips |
| Illumination | Plano concave mirror on gimble mount |
| Nose piece | Triple revolving |
| Objectives | 10x & 40/45x (s. L. ) (all achromatic). |
| Eye pieces | 10x & 15x |
| Condenser | Fixed abbe type condenser with iris diaphragm |
| Packing | Nicely packed in box. |
| Delivery Time | With in a weak. |
