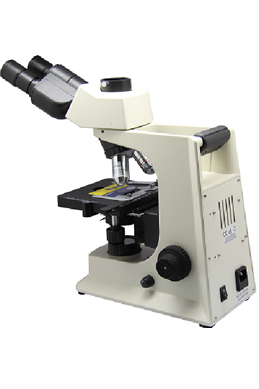

Universal Research Microscope ISI MARKED IS: 5204:1969


MODEL NO: - MICROSCAN-20

Technical specification

Model Microscan-20
Observation head Binocular observation head inclined at 45°, rotateable through 360°, interpupilary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having  adjustable dioptric scale.
Main body All part die cast to provide long life & good mechanical strength. Coaxial focusing control with ball bearing guide way & large knobs. Pre focusing/ auto focusing lock & tension adjustment ring.
Eyepiece High eye point wide field 10x, (f. N. 20) or 15x paired.
Objectives Din objectives 4x, 10x, 40/45x s. L. 100x oil immersion (s. L. ).
Nosepiece Quadruple nosepiece revolves on ball bearing.
Mechanical stage Co-axial low positioned large size double plate type x-y mechanical stage of size 142140mm with fine vernier graduation.
Condenser Abbe condenser n. A. 1. 25 having aspherical lens, adjustable iris diaphragm.
Illumination Built in illumination system with 6v-20w halogen bulb & plano concave mirror attachment suitable for 220v,50hz ac supply
Packing Nicely packed in box
