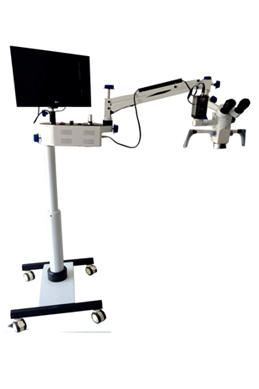

ENT Operating Microscope CE Marked & ISO Certified

Technical specification

Optics:
a. Apochromatic Optics with five step magnification changer.
b. Magnification Range 2.4x-40x or more
c. Max Field of view should be more than 180mm.
Objective:
a. Working distance f=250 mm and 400 mm.
b. Fine focusing for 300 mm.
Binocular tube:
a. Inclinable binocular tube f=170 mm or higher.
b. Inter pupillary distance adjustment from 55 mm to 75 mm.
Eyepieces:
a. Pair of wide field push-in eyepieces 10x or 12.5x with rubber sleeves
b. diopter setting -5D to +5D.
 Illumination:
a. Coaxial fiber optic / direct Xenon or LED illumination system.
b. In LED equipped systems: single lamp.
c. Dual lamp system with quick change over in case of Xenon.
d. Continuously lamp intensity adjustment by control knob near to the surgeon.
Stand:
a. Stable and sturdy floor stand on four lockable castors, column (height: minimum 1.6m).
b. Spring-balance articulated arm, carrier arm, power supply unit.
Others:
a. With lateral Handgrips for all knobs, dust cover.
b. integrated full HD (1080p) camera & full HD recording system. Camera should have play back function for videos & photo
c. Microscope is CE Marked & ISO Certified
